Even at times when you perceive something as perfect,
it is merely in waiting to get even better.


MG-1 Record Player Dot Line

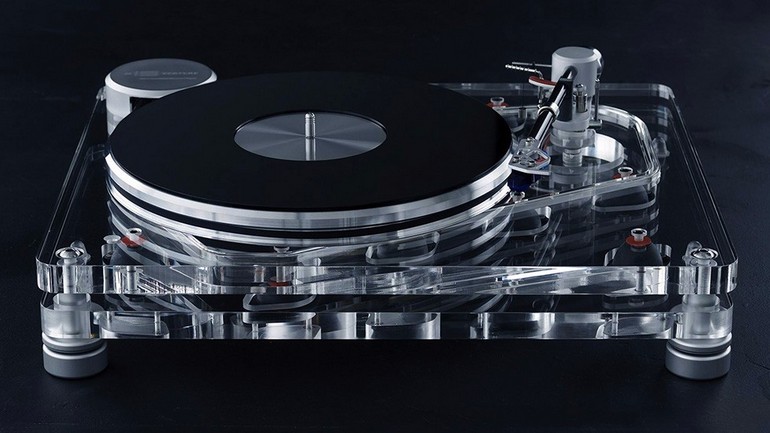

MG-1(Magic Groove No.1, Standard Model)

Vertere Record Player MG-1 Player
Comments:
MG-1은 가장 늦게 출시된 레코드 플레이어 제품으로 막내 모델입니다. 상급기의 기술적 노우하우가 적용되어 있으며 상대적으로 경제적인 가격대로 출시된 제품입니다. 이 모델은 국내에 수입되어 있으며 평가가 가능합니다.

레코드 플레이어 본체, SG-1 톤암, 톤암 케이블, 모터 드라이브 전원부가 포함된 세트 판매 일반적이며 가격도 세트 구매시 메리트가 있습니다.

비교적 저가의 카트리지를 물려도 섬세하고 정교한 재생이 가능한 신뢰할 만한 메카니즘을 가지고 있습니다. 빠른 스피드를 소화할 수 있는 캐주얼함이 돋보입니다.

Price:
1,500만원(SET: SG-1 톤암 표준 배선재 사용 및 Pulse B 등급 전원선과 톤암 케이블 옵션 포함 가격)
(본체, SG-톤암, 톤암 케이블, 모터 드라이브 전원부, 모터 드라이브 전원 배선재가 포함된 가격입니다)

Option:
케이블 등급에 따라 매우 다양한 옵션이 있습니다. 전화 문의 바랍니다.
2016년 뮌헨쑈 이후 부터 Special Balck 아크릴 마감 주문 가능. 추가 비용은 1,000,000만원

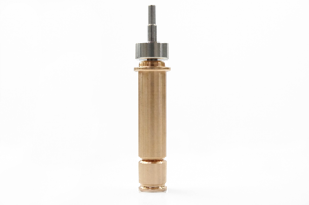

Main Bearing Assembly
The MG-1 main bearing is directly derived from the SG‐1 utilising exactly the same bearing spindle and ball with a phosphor bronze bearing housing machined using similar precision engineering techniques to our high standards. The materials used and manufacturing to extreme engineering tolerances make the MG-1 main bearing silent, smooth running and second only to the SG-1. MG‐1 main bearing is lubricated with Vertere proprietary formulated L‐1G record player main bearing oil for ultimate longevity.

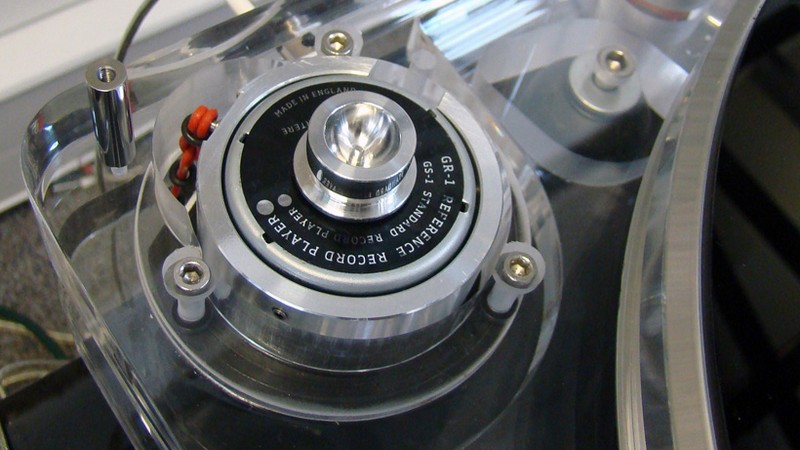

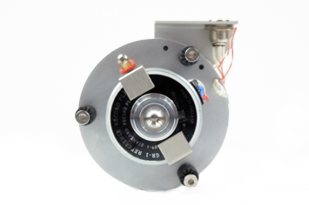

Record Player Motor Assembly
Directly derived from the RG-1 and SG-1 motor assembly design, the MG-1 utilises a single precision bearing fitted to its dedicated aluminium alloy motor platform and motor bearing support.

This unique design keeps the motor continuously synchronous to provide a drive with constant belt tension. Simply put, it drives the platter at constant speed without variation.

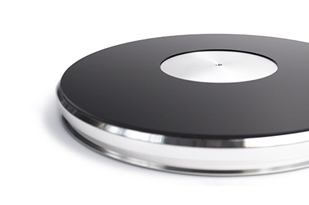

MG‐1 Turntable Main Platter
MG‐1 platter is a one piece aluminium alloy design based on the SG‐1 platter. Only utilising the same precision machining techniques to our extremely high tolerances ensures the smoothest running of the platter and the required inertia that keeps speed constant. Platter/Record interface is a 3mm bonded cast Acrylic disc as used on the SG‐1.


SG-1 & RG-1 Record Player Dot Line


이 등급의 Record Player는 선주문이 필요한 제품입니다. 모델별로 아크릴 베이스, 모터 드라이버는 동일하고 플래터와 메인 베어링의 품질 수준에 따라 모델 차이가 있습니다. 고성능 제품이지만 가격 또한 고가임에 유의하시기 바랍니다.



SG-1(Standard Groove No.1, High End Model)

Vertere Record Player SG-1 Platter

Vertere Record Player SG-1 Main Bearing
Comments:

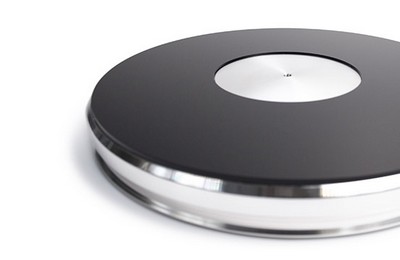

SG-1 platter is a one piece aluminium alloy design based on the RG-1 platter.
It is precision machined to highest tolerances to ensure smooth running and provide necessary inertia to ensure constant speed. Platter/Record interface is a 3mm bonded cast Acrylic disc similar to the RG-1.

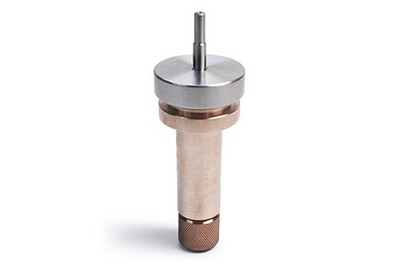

SG-1 Main Bearing Assembly
Directly derived from the unparalleled RG-1 main Bearing, the SG-1 performs second only to the RG-1. Based on the same design, geometry and similar precision engineering techniques, the SG‐1 bearing is made to our highest standards. Both RG-1 & SG-1 main bearings are lubricated with Vertere proprietary formulated L-1G record player main bearing oil.

Price:
2,500만원(문의 요망)
(베어링, 플래터, 모터 드라이브 전원부 포함)
* Tonearm은 포함되어 있지 않습니다

Option:
Motor Driver 전원부 업그레이드

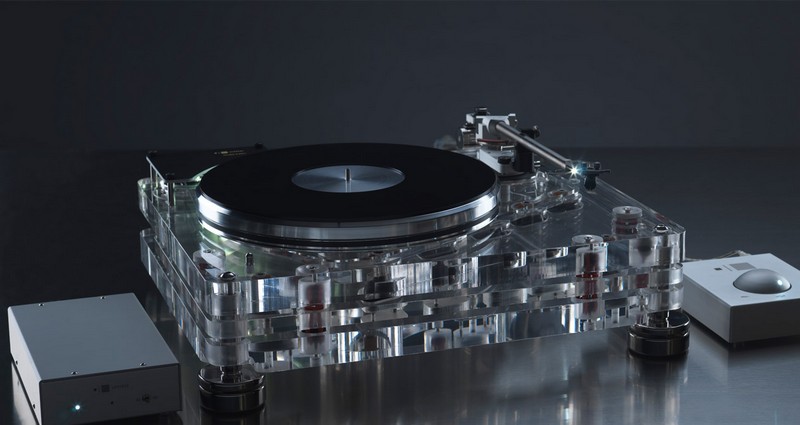

RG-1(Reference Groove No.1, Ultimate High End Model)

Vertere Record Player RG-1 Platter

Vertere Record Player RG-1 Main Bearing
Comments:

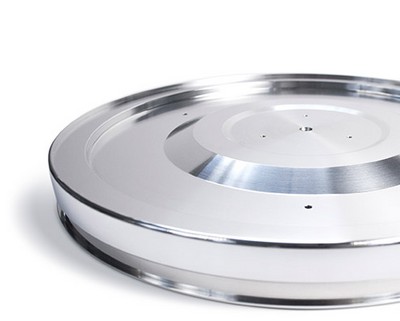

RG-1 platter assembly is a unique two piece super precision machined aluminium alloy design that provides friction only damping of the platter assembly. The main platter has a critically designed surface profile on its top side that perfectly matches the underside of the reference platter insert. The two parts fit so precisely that the assembly creates a linearly damped, non‐resonant structure.

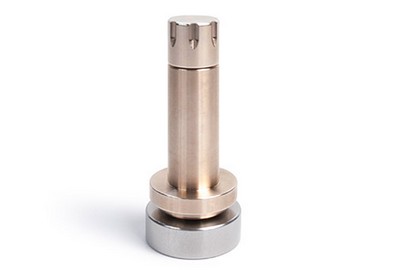

RG-1 Main Bearing Assembly
At the heart of any record player is its main bearing.
Vertere RG‐1 record player utilises probably the highest precision bearing assembly designed for a record player. As a result the drive system can rotate the platter assembly absolutely smoothly and silently. Thus the record is presented to the tonearm and cartridge without any unwanted bearing noise.

Price:
3,500만원(문의 요망)
(베어링, 플래터, 모터 드라이브 전원부 포함)
* Tonearm은 포함되어 있지 않습니다

Option:
Motor Driver 전원부 업그레이드


Supplyments Dot Line


Brochure


Major Parts


Motor Driver

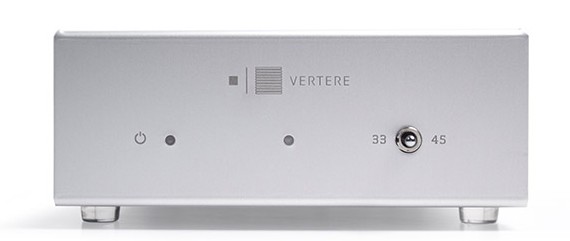

     Motor Driver Power Supply
